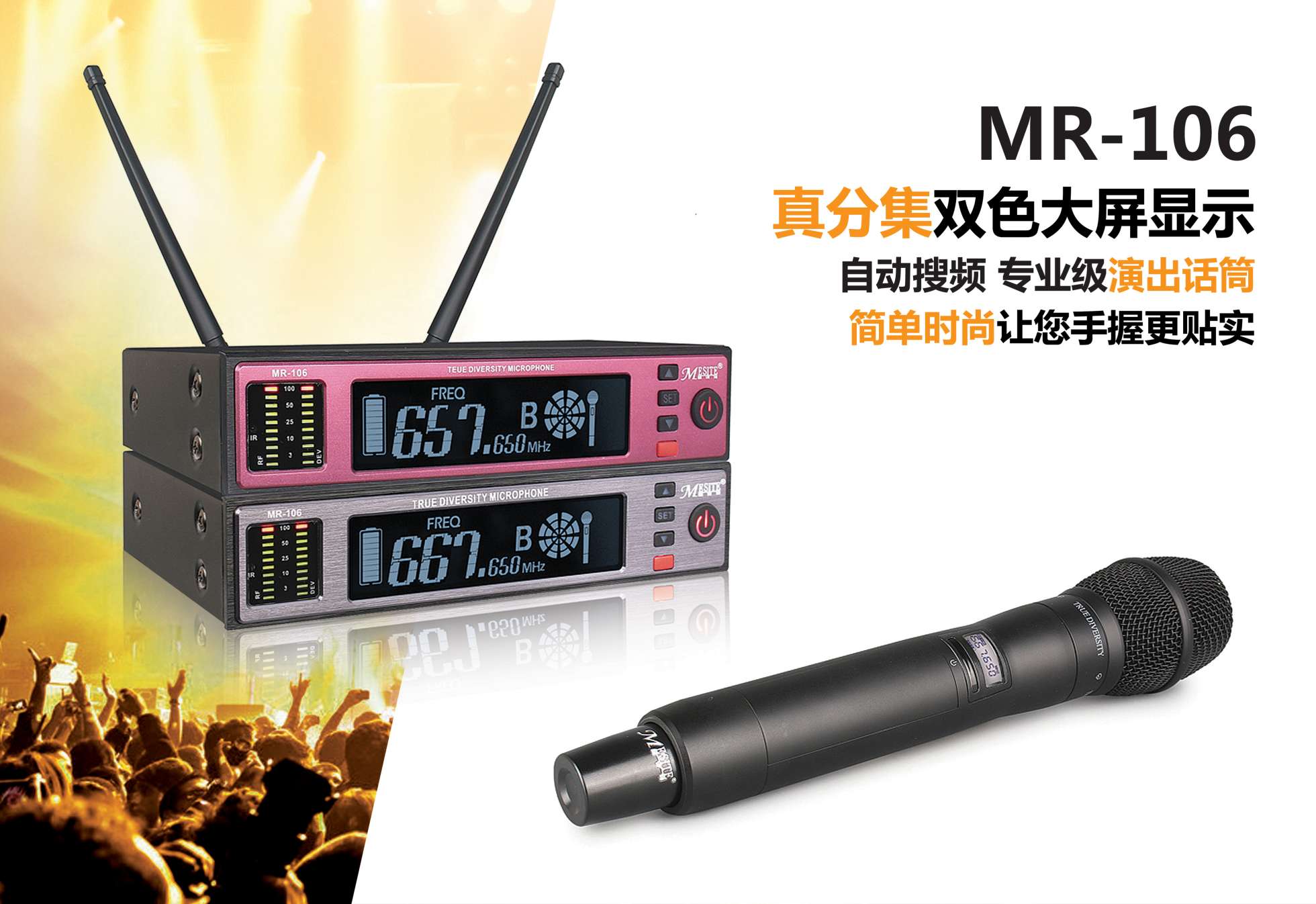

True diversity Single microphone
MR - 106 single channel true diversity wireless microphones, adopts double tuned the true diversity receiver receiving mode is more stable, double enhance antenna, receiving signal is stronger, A/B super receiving signal, the more effective to avoid in A complex environment using frequency, professional audio processing technology, the tuner team calibration high-fidelity, more detailed, the sound quality is more assured, Professional stage style, suitable for large performance, high-end multi-function hall, etc.
Product features:
1. SCAN one-click frequency scanning function: automatically search out the cleanest frequency within 200 meters and save it for use
2, using ATC infrared frequency mode, intelligent connection, no tedious operation, just easy to click, can automatically search intelligent connection, complete the transmitter and receiver channel synchronization, easy to use.
3. ID encryption and adding design 4, dual-color super large screen display, The host and handheld all have power consumption display, so that you can easily be clear at a glance
5, the system adopts the patented digital pilot control mode,150 channels can be adjusted, the conventional 600-900 frequency band, stagging the frequency band shipment can be stacked at the same time 12 sets, multiple sets of use without frequency series, frequency does not drop. Especially suitable for indoor and outdoor large sound amplification system.
6, launch with high-grade metal case, both touch and texture, accord with human body design, simple fashion let you hand paste, unique strip type switch button and tube, to avoid accidentally touch the power off during the process of speech/mute, stern tube under torsion and can be easily adjusted with frequency, holding a lock/unlock, convenient and comfortable, The hidden battery compartment opens the battery cover with a push.
7, the host volume: value 23 maximum, value 0 minimum, customers can according to their own equipment requirements of their own debugging.
8, the host and handheld with lock function, to avoid non-staff misoperation, so that you have no worries.
High fidelity sound transmission circuit, exclusive microphone, to ensure the clarity and reducibility of sound
9, no switch impact sound, to ensure the safety of the rear power amplifier and loudspeaker.
10, transmitter hand microphone and receiver with large LCD display, dual-color screen display, before the frequency orange, after the frequency white light.
11, the use of distance: ≥ 150 meters
12, with independent balanced output (XLR Canon) and unbalanced (6.3mm socket) mixed output, rich interface to meet all kinds of equipment connection
Technical parameters:
Receiver:
Frequency range: 600-900mhz
Maximum number of channels :150
Band width :200MHz
Reception sensitivity :-105
Signal to noise ratio: > 105 db (A)
Distortion: < 1%
Audio output level :8dBu Max
Power requirement :12-16 v dc, 500MA current, by external power supply
Hand-held transmitter:
Frequency range: 600-900mhz
Band width :200MHZ
Harmonic suppression :>55dBc
Maximum frequency offset :+_48KHZ
Frequency response: 50HZ-15khz (-3dB)
Signal to noise ratio: > 105 db (A)
Distortion: < 1%
Power requirement :2 AA 1.5V alkaline or rechargeable batteries Battery life :>8H(alkaline)
Belt type transmitter: (Metal belt has its own manual frequency modulation function, volume adjustment function, automatic frequency search pilot within 150 meters)
With customized head wear:
Frequency range: 600-900mhz
Band width :200MHz
Harmonic suppression :>55dBc
Maximum frequency offset :+_48KHz
Frequency response: 50HZ-15khz (-3dB)
SNR :>105dB(A) Distortion :<1%
Power requirement :2 AA 1.5V alkaline or rechargeable batteries Battery life :>8H(alkaline)
Use distance: ≥120 meters
With customized head wear:
1. The humanized microphone design hose can adjust the Angle at will to make the bending more firm and comfortable.
2. Customized capacitive microphone, clear sound pickup, effective anti-scream.
3. The earhang is made of imported silica gel, which is more soft and comfortable to wear.
