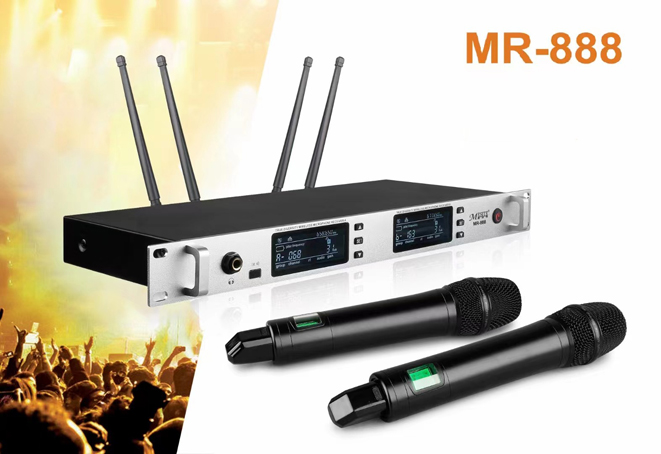

MR-888真分集一拖二手持

Technical parameters:

Receiver indicators:

Oscillation mode :PLL phase-locked loop (output power :12dBm(16mW)/5dBm(3.2MW)(HI/LO conversion)

Receiver frequency range: 540-900mhz

Number of channels: 300

Band width :200MHz

Reception sensitivity :-105

Signal to noise ratio: > 105 db (A)

Distortion: < 0.5%

Audio output level :8dBu Max

Power requirement :12-16 v dc, 500MA current, by external power supply

Hand-held transmitter: frequency range: 540-900mhz

Band width :200MHZ

Harmonic suppression :>55dBc

Frequency offset :+_48KHZ

Frequency response: 50HZ-15khz (-3dB)

Signal to noise ratio: > 105 db (A)

Distortion: < 0.5%

Power requirement :2 AA alkaline or rechargeable batteries Battery life :>8H(alkaline)





Fanny pack transmitter:

Frequency range: 540-900mhz

Bandwidth :200MHz Harmonic suppression :>55dBc

Frequency offset :+_48KHz

Frequency response: 50HZ-15khz (-3dB)

Signal to noise ratio: > 105 db (A)

Distortion: < 0.5%

Power requirement :2 AA alkaline or rechargeable batteries Battery life :>8H(alkaline)

Use distance: ≥ 120 meters
