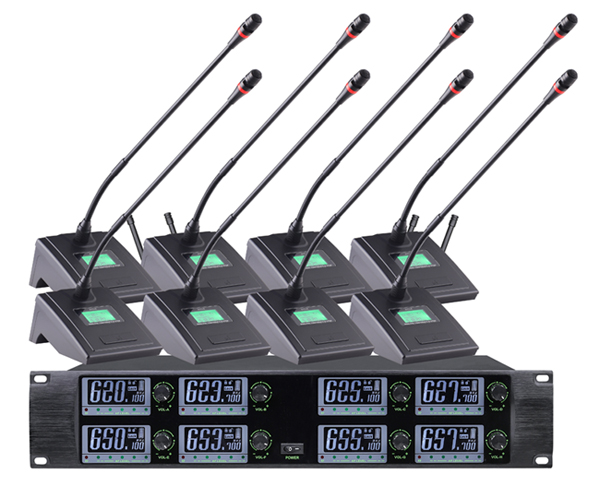

MST-5800 solid U segment Yituoba meeting

Technical parameters:

Wireless receiver:

1. Carrier frequency band: UHF610~920MHz

2. Number of channels: eight channels

3, oscillation mode: quartz oscillation

4. Sensitivity: when the offset is 25KHz and the input is 6dBv, S/N>60dB

5, band width: 30 Mhz

6, Offset: ±45KHz

7, comprehensive S/N ratio: >105dB

8. Comprehensive T.H.D: <0.7% @1KHz

9, comprehensive frequency response: 45Hz~18KHZ ±3dB

10, power supply: DC 12V~16V 10W

11, output socket: XLR parallel and 6.3 non-parallel socket

12, working distance: 30 meters

Conference transmitter

1. Carrier frequency band: UHF610~920MHz

2, oscillation mode: quartz oscillation

3, harmonic radiation: < -65dbm

4, Offset: ±45KHz

5, frequency response: 45Hz~18KHZ ±3dB

6, band width: 120 Mhz

7. Sound picking head: moving coil type

8, RF power output: 10MW

9. Battery: AA x 2

10, current consumption: <100mA

11, continuous working time: >10 hours



Fanny pack transmitter

1. Carrier frequency band: UHF610~920MHz

2, oscillation mode: quartz oscillation

3, harmonic radiation: < -65dbm

4, Offset: ±45KHz

5, frequency response: 45Hz~18KHZ ±3dB 6, band width: 120 Mhz

6. Sound picking head: capacitive

7, RF power output: 10MW

8. Battery: AA x 1

9, current consumption: <150mA

10, input socket: 4-PIN mini XLR socket 11 continuous working time: >8 hours
